Solis 10kW S5-GR3P On-Grid Inverter – Three Phase | Enon Traders

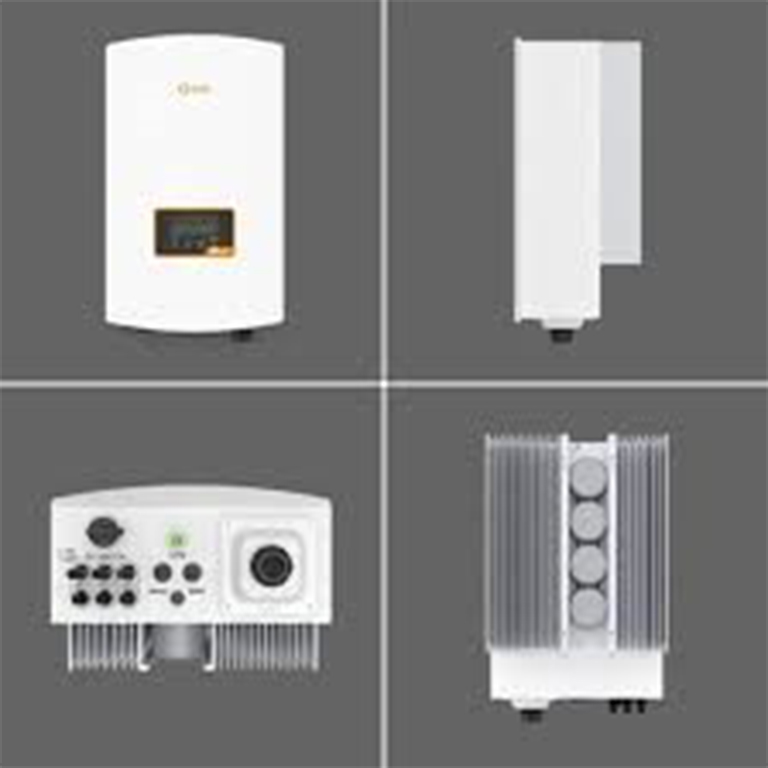

The Solis 10kW S5-GR3P On-Grid Inverter is a premium three-phase solar inverter designed for high-efficiency power generation in Pakistan. Delivering 98.7% conversion efficiency with dual MPPTs, it maximizes energy yield even in changing sunlight conditions.
Its >150% DC/AC ratio gives installers flexibility to oversize solar arrays, making it ideal for both residential rooftops and industrial solar plants.
Built to last, the inverter comes with an IP66 weatherproof enclosure for outdoor mounting, AFCI fire protection for enhanced safety, and integrated smart monitoring (WiFi/GPRS/RS485).
Whether you’re running a home solar inverter system → [Solar Inverters], setting up a commercial rooftop, or installing a solar farm, the Solis 10kW is engineered for long-term reliability and performance.
Key Features
✅ 10kW Three-Phase On-Grid Inverter
✅ Up to 98.7% peak efficiency
✅ Dual MPPT for smart tracking
✅ Wide 160–850V DC input range
✅ >150% DC/AC ratio for array flexibility
✅ AFCI fire prevention & protection features
✅ IP66 enclosure for outdoor durability
✅ THDi <2% for clean grid power
✅ WiFi/GPRS/RS485 remote monitoring
✅ Compact, lightweight, installer-friendly
Technical Specifications
| Specification | Details |
| Model | Solis 10kW S5-GR3P (S5-GR3P10K-LV) |
| Inverter Type | On-Grid (Grid-Tied) |
| Rated Power | 10,000W (10kW) |
| Max Efficiency | 98.7% |
| Max. DC Input Voltage | 1,100V DC |
| MPPT Voltage Range | 160V – 850V |
| Number of MPPTs | 2 (2 strings per MPPT) |
| Start-up Voltage | 180V |
| Max. DC Input Current | 22A |
| Max. Short Circuit Current | 34.3A |
| Nominal AC Output | 230/400V, 3-Phase |
| Nominal AC Output Current | 43.5A |
| Power Factor | >0.99 |
| THDi | <2% |
| Protection Features | AFCI, Reverse Polarity, Surge, Short Circuit |
| Communication | WiFi, GPRS, RS485 |
| Enclosure | IP66 (Outdoor Rated) |
| Dimensions | 310 × 563 × 219 mm |
| Weight | ~19.8 kg |
| Certifications | IEC / CE Certified |
Benefits
✔ Save electricity costs with 98.7% efficiency
✔ Fire-safe design with AFCI and built-in protections
✔ Remote 24/7 monitoring via WiFi/GPRS
✔ Durable IP66 build for outdoor installations
✔ Works seamlessly with → [Breakers] and → [Wires & Cables]
✔ Flexible PV array configuration with >150% DC/AC ratio
✔ Compact size for easy mounting and installation
Applications (with interlinking)
The Solis 10kW On-Grid Inverter is ideal for:
Residential Projects – savings with → [Solar Inverters]
Commercial Buildings – offices, plazas, and retail stores
Industrial Units – reliable three-phase solar performance
Solar Power Plants – scalable for multi-inverter setups
Fully compatible with → [Breakers] and → [Wires & Cables]
💲 Competitive Pricing – Contact us today for exclusive quotes!
Call Now or
🚨 Limited Stock Alert! Secure your unit before it’s gone.
