DC Breakers for Solar Systems: How to Choose the Right Protection

When people set up their solar systems, they are usually concerned with the solar panels, the inverters, and the batteries. However, there is one particular component of the solar system that plays a critical role in the safety and protection of the solar system. This component is the DC breaker. This component might not be critical at first, but it plays a critical role in the prevention of serious electrical risks.

It is not just the solar system that produces electricity; it also has the role of protecting the equipment. This is important in the sense that if the solar system is not well protected, it will develop serious problems in the future, especially in Pakistan, due to the hot and dusty conditions.

One critical thing to understand about the solar system is that it produces current all the time. This is important in the sense that the current has to be controlled using the appropriate DC breaker.

Many people assume a breaker is optional, but that can lead to costly problems later. A DC breaker protects panels, wiring, batteries, and inverters, helping your system run safely, reliably, and without unnecessary risk.

What Is a DC Breaker?

A DC breaker is essentially a switch that operates on direct current. Since the solar panels are used to generate direct current, the device must be able to handle the direct current correctly.

In the event that the current is too much, the device will automatically switch off the current. This will protect the wiring, the inverter, the batteries, and other devices in the system.

Why DC Breakers Matter in Solar Systems

A solar system keeps producing electricity whenever sunlight is available. That is why proper DC protection is important. Without the right breaker, the system may face problems such as:

• overheating
• wiring damage
• inverter damage
• unsafe maintenance conditions
• fire risk caused by DC faults

In Pakistan, where heat and dust can affect electrical equipment, choosing the right protection becomes even more important.

If you are selecting parts for your system, always focus on quality first. Choosing quality solar equipment in Pakistan requires careful attention to certifications, brand reputation, and warranty support, not just price. This guide explains how to avoid substandard imports and select reliable components that perform well in local conditions.

DC Breaker vs AC Breaker

It is here that the common confusion arises.

A DC breaker and an AC breaker are not the same, although they look the same. AC changes direction many times, whereas the flow of DC is in one direction only. This makes the flow of DC difficult to interrupt.

It is here that we must not use an AC breaker in the solar DC circuit, as it might not interrupt the fault and create a serious safety hazard.

Types of DC Breakers Used in Solar Systems

The right breaker depends on your system size and design.

MCB

MCBs are commonly used in small residential solar systems. They are suitable for lower current applications and basic solar protection needs.

MCCB

MCCBs are used in larger systems where higher current handling is required. They are more suitable for bigger homes and commercial installations.

A product like this is an example of that category: MCCB moulded case circuit breaker 4 pole 30A–100A is ideal for higher-capacity solar systems where stronger and more reliable protection is required. It offers better durability, higher breaking capacity, and improved safety for handling larger electrical loads.

Battery-Side DC Breakers

If your system includes batteries, battery-side DC protection is also important because battery banks can deliver high current quickly.

If your setup includes storage, read this related guide. Battery storage for home solar in Pakistan helps homeowners store excess solar energy for use during nighttime or power outages. It improves energy independence, reduces reliance on the grid, and ensures a more stable and reliable solar system.

How to Choose the Right DC Breaker

This is the part most readers actually care about.

Check the System Size

As a general starting point:

• 1 to 3 kW systems usually use lower-capacity DC breakers
• 3 to 10 kW systems often need medium-range protection
• Larger systems may need heavier-duty breakers such as MCCBs

If you are still deciding on system size, this guide can help. How to size your home solar system in Pakistan.

Check the Voltage Rating

The breaker’s DC voltage rating must be higher than the actual voltage of the circuit. This is one of the most important checks, especially when panels are connected in series.

Check the Current Rating

The breaker must match the expected current of the circuit. A breaker that is too small may trip too often. A breaker that is too large may not provide proper protection when needed.

Check the Pole Configuration

Depending on the system, you may need 1-pole, 2-pole, or higher-pole protection. The correct option depends on your solar design.

Consider Installation Conditions

In Pakistan, heat, dust, and outdoor exposure can affect performance. A low-quality breaker may not last long in real operating conditions.

Quick Reference Table

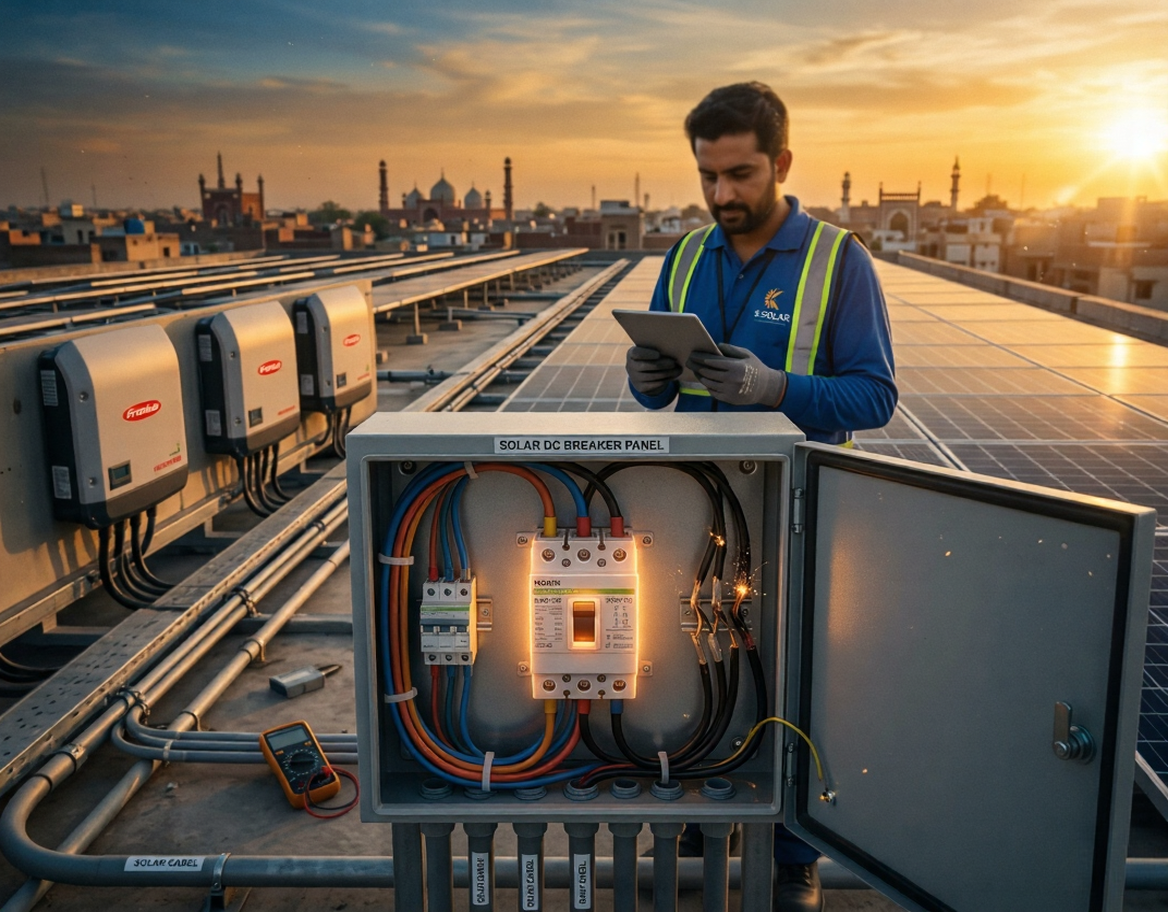

Where DC Breakers Are Usually Installed

In most solar systems, DC breakers are installed in these main places:

Between Solar Panels and the Inverter

This helps protect the DC power coming from the solar array before it enters the inverter.

Between Battery and Inverter

In hybrid and backup systems, this protects the battery side, where current can be very high.

A proper enclosure also improves safety and installation quality. A 10-pole metallic distribution box for solar systems provides a safe and organized enclosure for housing breakers and other protection devices. It improves wiring management, enhances safety, and ensures your solar setup remains clean, secure, and easy to maintain.

Common Mistakes to Avoid

Some of the most common mistakes are:

• using an AC breaker instead of a DC breaker
• ignoring the voltage rating
• buying low-quality products
• choosing the wrong size
• Poor installation planning

For a broader look at solar installation issues, read this guide. Top mistakes to avoid when installing rooftop solar in Pakistan.

DC Breakers Are Only One Part of Solar Protection

A DC breaker is important, but it should work with other protection components, such as:

• DC fuses
• surge protection devices
• proper earthing
• correct cable sizing
• reliable connectors

Even the best breaker cannot fully protect a system that uses poor-quality cables. Solar DC cables guide explains how to choose the right cable size, insulation, and quality for safe and efficient solar power transmission. It helps prevent energy loss, overheating, and long-term system damage in your solar setup.

A dedicated solar breaker example can also help readers understand the product better.
Schneider 2-pole 125A DC circuit breaker 1000V solar protection is a high-quality option designed for reliable performance in demanding solar applications.

It ensures safe interruption of DC, offering strong protection for inverters, batteries, and solar panel circuits.

Conclusion

It should not only produce electricity. It should safely produce electricity, consistently, and with proper protection built in to every critical section of the solar system.

A well-chosen DC breaker helps protect the inverter, the solar panels, the wiring, the batteries, and the overall reliability of the solar system. In simple words, it is one of the most important parts of practical solar protection.

So, if you are planning to set up a new solar system or if you are looking at the solar system of someone else, don’t adopt a casual attitude. Check the voltage ratings, check if the current ratings are correct, check if the type of breaker chosen is correct, and buy the best suitable parts for the solar system in Pakistan’s actual conditions.
