AC Breakers in Solar Installation: How to Choose the Right Size for Safe AC Protection

When people install a solar system, most of their attention goes to panels, the inverter, and sometimes the battery. But the real safety of the system often depends on one small component that gets ignored: the AC breaker.

A wrongly sized or poorly installed AC breaker does not just cause nuisance tripping. It can lead to overheated wires, inverter faults, and, in worst cases, fire risks. In Pakistan, where voltage fluctuations and extreme temperatures are common, this risk becomes even more serious.

The problem is simple. Many solar systems are installed without properly calculating the AC protection. Installers often guess the breaker size or reuse existing ones, which puts the entire system under stress from day one.

If you are planning a solar installation or already have one running, understanding how AC breakers work and how to choose the right size is essential. It helps you protect your investment, avoid hidden faults, and ensure your system runs safely for years.

What Is an AC Breaker in Solar Installation?

An AC breaker is a protection device installed on the AC side of your solar system. It controls and protects the electricity coming out of your inverter.

In simple terms:

• It stops excessive current
• It disconnects power during faults
• It protects your home wiring and appliances

A typical solar flow looks like this:

• Solar panels generate DC
• An inverter converts DC into AC
• The AC breaker controls this output before it enters your distribution board

If you are still planning your system, understanding sizing basics helps a lot. You can explore how to size your home solar system to get a clearer picture.

Why AC Breakers Are Critical for AC Protection

Many installers install breakers without explaining their purpose. But AC protection is one of the most important safety layers in a solar system.

Without a proper AC breaker:

• Wires can overheat under high load
• The inverter can get damaged during faults
• There is a higher risk of fire

The AC breaker performs three main functions:

• Protects against overload
• Stops short-circuit current
• Isolates the system when needed

This is not just a switch. It is the main protection point between your solar system and your home.

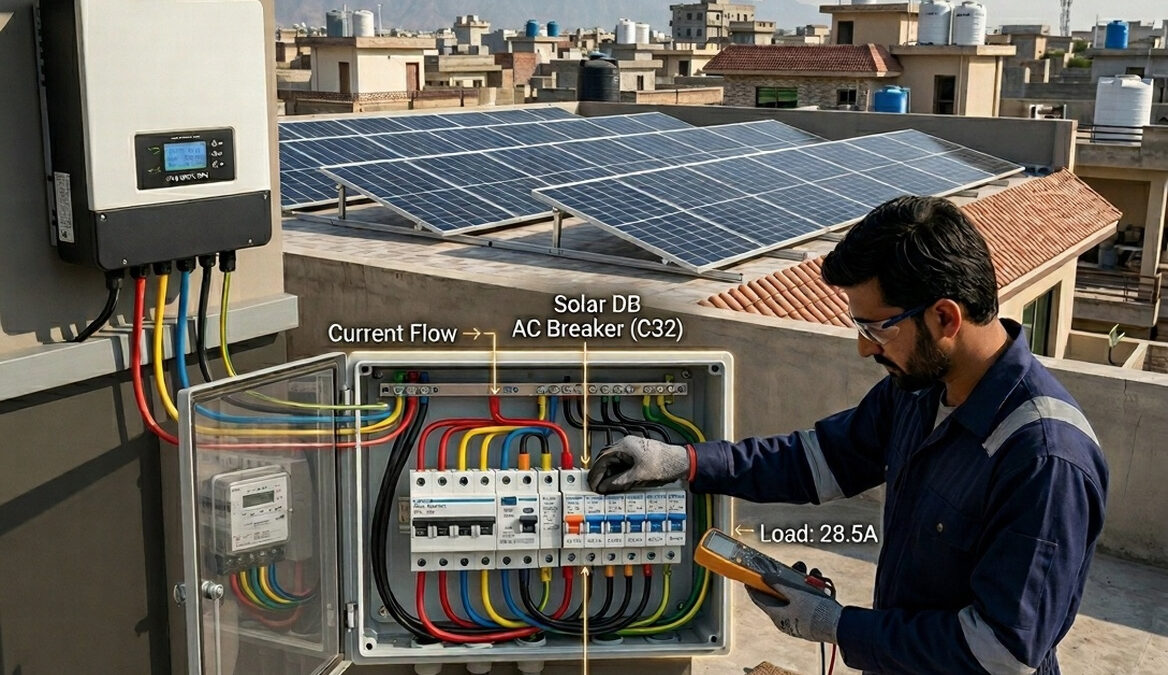

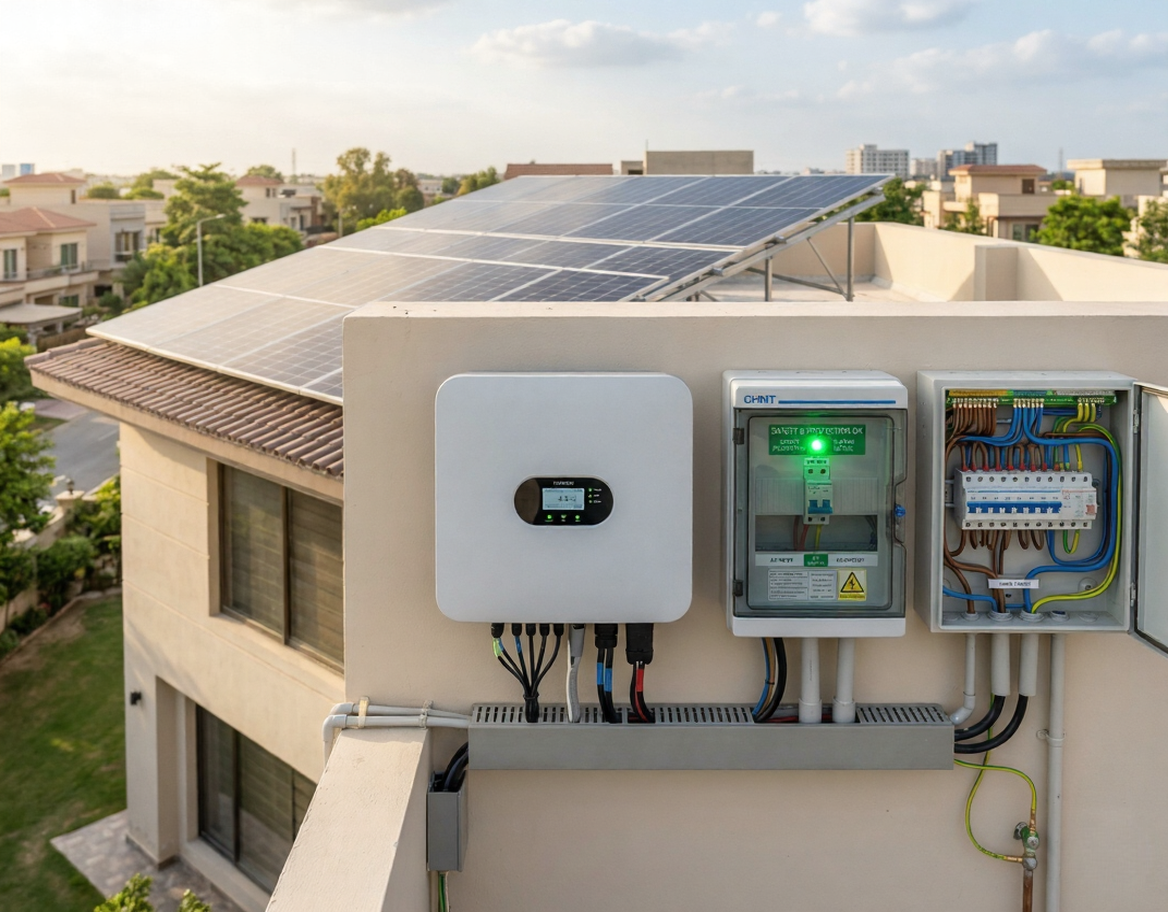

Where AC Breakers Are Installed in a Solar System

Placement is where most confusion happens. A correct setup ensures smooth operation.

Standard flow:

• Inverter output connects to the AC breaker
• The AC breaker connects to the distribution board
• The distribution board supplies electricity to the home or the grid

Common setups:

Grid-tied systems

• The breaker is placed between the inverter and the main DB

Hybrid systems

• Breaker may be used for both grid and backup lines

Some installers connect solar to an existing breaker. This is not recommended. A dedicated breaker improves safety and control.

If you want to avoid installation issues, read the top mistakes to avoid when installing rooftop solar.

Types of AC Breakers Used in Solar Installations

Choosing the right type matters as much as choosing the right size.

Common options:

MCB (Miniature Circuit Breaker)

• Used in small systems
• Suitable for homes up to around 6kW

MCCB (Molded Case Circuit Breaker)

• Used in larger systems
• Handles higher current with better protection

You can see a typical example of a heavy-duty option like this MCCB circuit breaker.

Isolators

• Used for manual disconnection
• Do not replace breakers

Each type serves a different purpose. The choice depends on your system size and load.

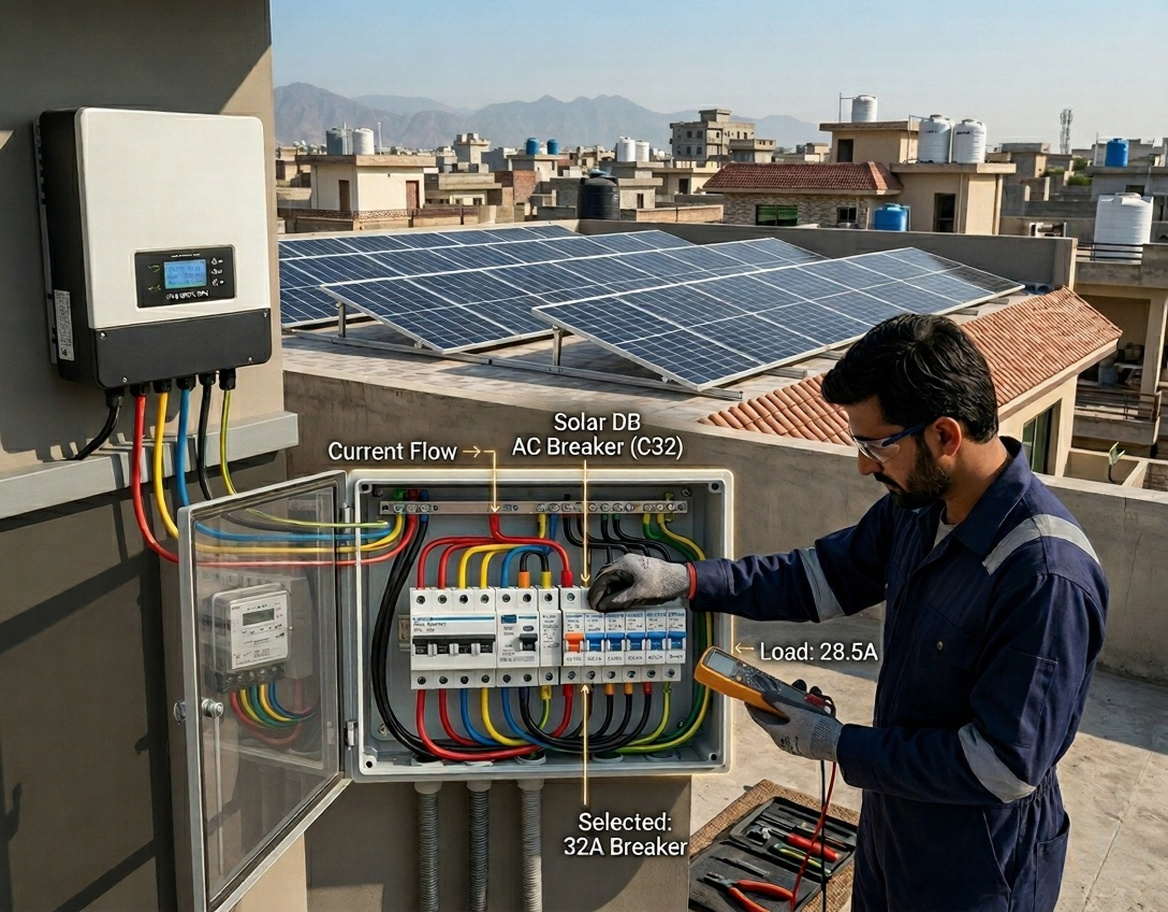

How to Choose the Right AC Breaker Size

This is the most important step. Most people guess the breaker size, which leads to problems later.

Breaker size depends on current, not just system size.

Step 1: Convert kW to amps

In Pakistan, single-phase voltage is about 230V.

Example:

• 5kW system produces around 21 to 23 amps

Step 2: Add safety margin

Always choose a slightly higher rating to avoid unnecessary tripping.

Typical AC Breaker Sizing

Key points to remember:

• Undersized breaker trips frequently
• Oversized breaker increases safety risk
• Always follow the inverter specifications

If you are using a modern inverter, always check its output current. For example, this Inverex Nitrox 10kW on-grid inverter requires proper breaker matching.

AC Breaker vs DC Breaker in Solar Systems

Many users confuse AC and DC breakers. Both are essential but serve different roles.

DC breaker

• Installed between panels and the inverter
• Handles DC

AC breaker

• Installed after the inverter
• Handles AC output

Both must be installed correctly. One cannot replace the other.

To understand this better, read DC breakers in solar systems.

Common Mistakes in AC Breaker Selection

Many solar systems fail due to simple mistakes.

Common issues:

• Using an existing home breaker without checking its capacity
• Ignoring inverter specifications
• Choosing low-quality breakers
• Loose or poor wiring
• No proper distribution box

A well-organized system includes a proper DB. For example, this metal distribution box for solar systems ensures better safety and cable management.

Local Best Practices for Safe AC Protection

Solar systems in Pakistan face unique conditions:

• Voltage fluctuations
• High temperature
• Load shedding

Because of this, safety standards should be higher.

Follow these practices:

• Use branded AC breakers
• Install a dedicated breaker for solar
• Ensure proper earthing
• Keep wiring clean and secure

If you are selecting components, this guide on how to choose quality solar equipment in Pakistan can help you avoid poor-quality products.

How to Check If Your AC Breaker Setup Is Safe

You do not always need an expert to identify basic issues. A simple check can reveal problems.

Warning signs:

• Breaker trips frequently
• Burning smell near DB
• Wires feel hot
• Loose connections

Quick checks:

• Is there a dedicated breaker for solar?
• Does the breaker match the inverter output?
• Is wiring neat and properly tightened?

If any issue appears, do not ignore it. Fixing early prevents bigger damage later.

Conclusion

Many times, AC breakers are overlooked in their installation in solar energy systems. However, it is important to get an AC breaker that will help you achieve system efficiency and keep your system safe from hazards.

This can be achieved through the following steps. The first step should be determining the current, after which the correct breaker size should be selected and installed in the appropriate location. Using wrong AC breakers, such as the ones that have already been used before, and neglecting the recommendations provided by the inverter is a big mistake.

Solar system installation goes beyond installing the panels and the production process. Your system can only be efficient when the protection measures have been put into consideration.
